Rubber Bellow Seals
Sealen engineering LLP is one of the best Rubber Bellow Seal Manufacturers in the industry. A straightforward type of seal, the Rubber Bellow Mechanical Seal Equivalent to MG12, is used to confine fluid in a vessel, usually a pump or a mixer. The mechanical gasket is made to be able to withstand substances that are extremely corrosive, such as concentrated acids, caustic, powerful oxidizing, and reducing agents. Even the movement of organic substances with molecular activity may be impeded.
We focus all of our efforts on meeting customer standards by giving them excellent products that will satisfy them. In addition, we conduct all of our business with utmost morality and openness in order to maintain positive relationships with our clients. To meet the rising demand from clients across world markets, we have established an outstanding track record for genuine quality goods, excellent service, reliable performance, and affordable prices.
We have made a name for ourselves as a well-known business that offers our clients a variety of precision mechanical seal solutions thanks to our consistent performance and high-quality goods. We create flawless product series with the help of our cutting-edge manufacturing equipment. They also aid us in completing large orders on schedule without sacrificing quality. We effectively meet the complete product requirements of our clients thanks to our excellent infrastructure, which includes machinery and auxiliary tools. Our team's experience and in-depth knowledge enable us to complete our design and manufacturing needs.
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Applications | Generally used in Water Pumps, Submersible Pumps & Hot Oil Pumps. |
| Shaft Dia | 10 to 80 mm |
| Pressure | 8 Bars (max) |
| Temperature | -20 to +160°C |
| Velocity | Up to 20 m/sec |
| Download |  View |
Preferred Buyer From
| Location | Worldwide |

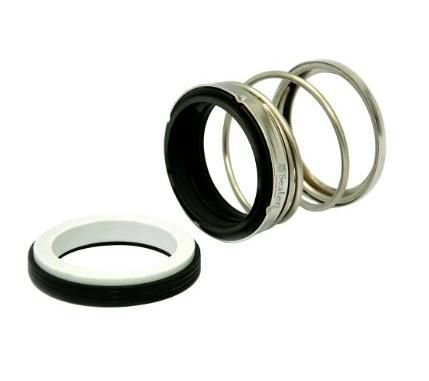

Rubber Bellow Seal SRB 10 Series is a single coil spring seal with elastomeric bellow designed for Water, Oil and Light Duty Applications. This seal has self aligning feature which compensate abnormal shaft end play and run out, which leads to improved service life. Elastomeric bellow protects shaft and sleeve from fretting.
Seal Components/Face:
- Carbon / Lecrolloy
- Carbon / Ceramic
- Carbon / Silicon Carbide
- Silicon Carbide / Silicon Carbide
- Secondary Seal : Nitrile, Viton
- Metal Parts: SS 304, SS 316
Seal Characteristics:
- Single Acting
- Unbalanced
- Single Helical Coil Spring
- Independent of Direction of Rotation
- Torque Transmission by Elastomer Bellow
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Applications | Generally used in Water Pumps, Submersible & Sewage Pumps. |
| Shaft Dia | 10 to 100 mm |
| Pressure | 6 Bars (max) |
| Temperature | -20 to +160°C |
| Velocity | Up to 20 m/sec |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
Rubber Bellow Seal SRB 20 Series is a single coil spring rubber bellow seal used for Water and Oil Containing Soft Slurry Applications. This seal is mainly used in waste water treatment plants for sewage application. Seal has self aligning feature which compensates abnormal shaft end play and run out, which leads to improved service life. Elastomeric bellow protects shaft and sleeve from fretting.
Seal Components/Face :
- Carbon / Ceramic
- Carbon / Silicon Carbide
- Silicon Carbide / Silicon Carbide
- Secondary Seal : Nitrile, Viton
- Metal Parts: SS 304, SS 316
Seal Characteristics :
- Single Acting
- Unbalanced
- Single Helical Coil Spring
- Independent of Direction of Rotation
- Torque Transmission by Spring Holder
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Applications | Generally used in Water Pumps, Mixers, Compressors & Blenders. |
| Shaft Dia | 0.625 to 2.000 Inch |
| Pressure | 18 Bars (max)) |
| Temperature | -20 to +180°C |
| Velocity | Up to 20 m/sec |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
Rubber Bellow Seal SRB 30 Series are single coil spring rubber bellow seals used in Petrochemicals, Food Processing, Pulp & Paper and other demanding Applications. These seals are mainly used in compressors. Seals have self aligning feature which compensates abnormal shaft end play and run out, which leads to improved service life.Elastomeric bellow protects shaft and sleeve from fretting. Drive to the seal faces is given through notches provided on retainer. Seals can be used for high speed & high pressure applications.
Seal Components/Face:
- Carbon / Ceramic
- Carbon / Silicon Carbide
- Silicon Carbide / Silicon Carbide
- Secondary Seal : Nitrile, Viton
- Metal Parts: SS 304, SS 316
Seal Characteristics:
- Single Acting
- Unbalanced
- Single Helical Coil Spring
- Independent of Direction of Rotation
- Torque Transmission by Drive Ring
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Applications | Generally used in Water Pumps, Mixers, Compressors & Blenders. |
| Shaft Dia | 0.625 to 2.000 Inch |
| Pressure | 18 Bars (max)) |
| Temperature | -20 to +180°C |
| Velocity | Up to 20 m/sec |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
Rubber Bellow Seal SRB 40 Series are single coil spring rubber bellow seals used in Petrochemicals, Food Processing, Pulp & Paper and other demanding Applications. These seals are mainly used in compressors. Seals have self aligning feature which compensates abnormal shaft end play and run out, which leads to improved service life.Elastomeric bellow protects shaft and sleeve from fretting. Drive to the seal faces is given through notches provided on retainer. Seals can be used for high speed & high pressure applications.
Seal Components/Face:
- Carbon / Ceramic
- Carbon / Silicon Carbide
- Silicon Carbide / Silicon Carbide
- Secondary Seal : Nitrile, Viton
- Metal Parts: SS 304, SS 316
Seal Characteristics:
- Single Acting
- Unbalanced
- Single Helical Coil Spring
- Independent of Direction of Rotation
- Torque Transmission by Drive Ring
