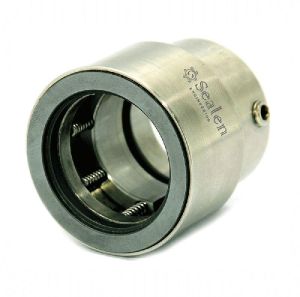

MSOP/C 160 Multi Spring Out Of Product Cartridge Seal
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Applications | Food Industry, Chemical Industry, Mining Industry, Water Treatment, Media Containing Slurry. |
| Shaft Dia | 22 to 90 mm |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
ViewMulti Spring Out Of Product Cartridge Seal MSOP/C 160 Series is a multi spring cartridge construction factory assembled slide on seal specially designed and developed for slurry application. The springs are protected from the media by means of dynamic O ring. This seal requires tightening of stuffing box studs, nuts and detaching of location plate before starting the equipment. No dimensional measurement are to be done at site. Seal can be easily installed by a unskilled person.
Seal Components/Face:
- Carbon / Ceramic
- Carbon / Silicon Carbide
- Silicon Carbide / Silicon Carbide
- Tungsten Carbide / Tungsten Carbide
- Secondary Seal : Elastomers
- Metal Parts: SS304, SS316, Hastelloy-C
Seal Characteristics:
- Single Acting Balanced
- Springs are Outside the Media
- Independent of Direction of Rotation
- Stable Drive-pins/Lugs
- No Shaft Fretting
